Vortex Alembic Equipment Kit

Powered by VORTEX, connected by CREATE+
The VORTEX is a groundbreaking air-cooled condenser that allows you to operate anywhere without the constraints of cooling water, without sacrificing time or quality, and saving hundreds of litres of water per run.  Complete with the VORTEX Air Cooled Condenser, CREATE+ 2" modular components, and connecting tri-clamps and gaskets, the VORTEX Alembic Equipment Kit allows you to run your alembic setup without any additional cooling water needed.

The VORTEX Air Cooled condenser utilises forced air to dissipate heat from vapour and liquid and can be used in place of water-cooled condensers and dephlegmators. A simple turn of a dial controls fan speed and cooling temperatures instantly and puts precision in your hands at every stage.

INSTRUCTIONS: Assemble the CREATE+ modular components with the VORTEX Air Cooled Condenser per the instructions. Attach to your copper dome and boiler (sold separately) and connect to power.

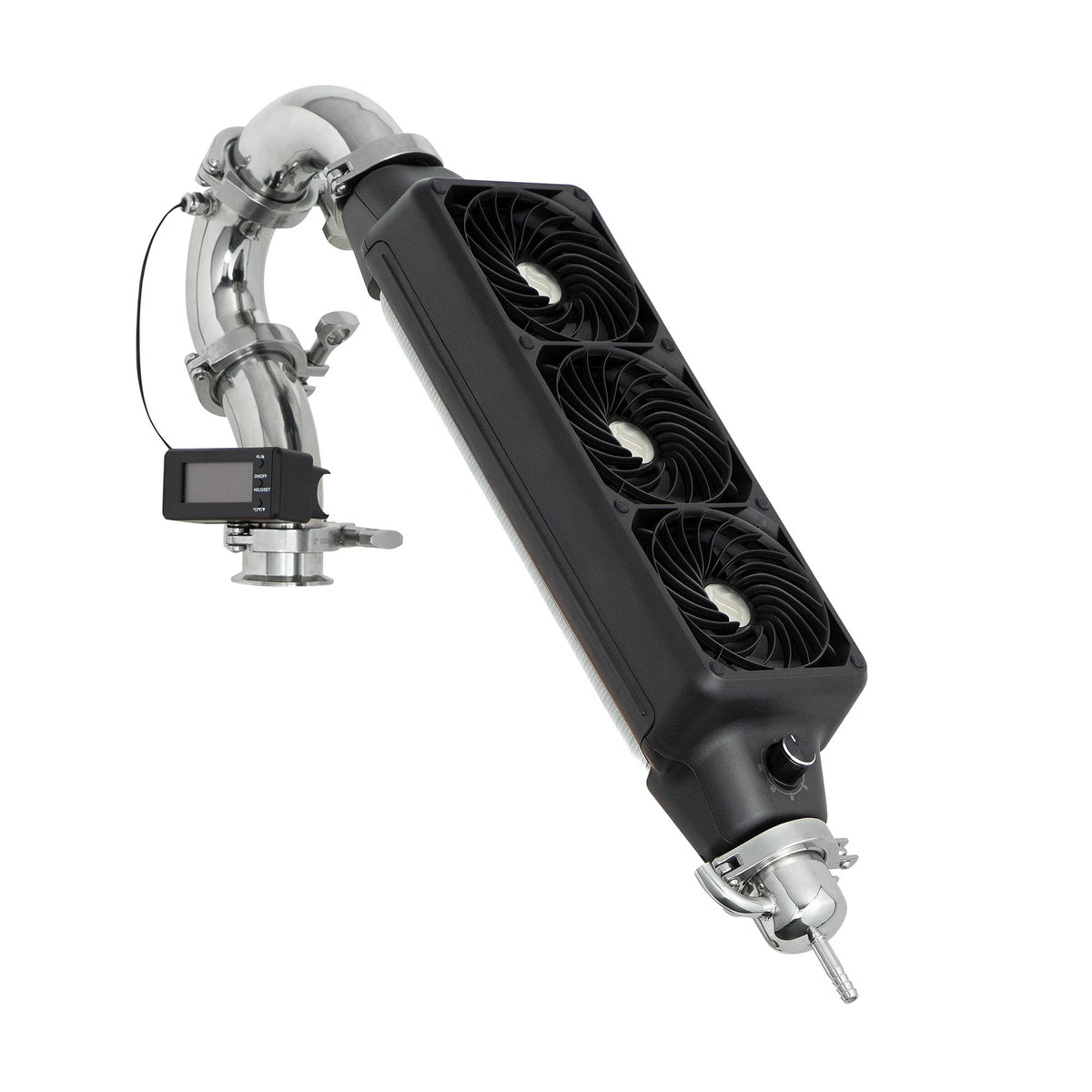

As vapour or liquid moves through the two internal tubes of the condenser, the aluminium fins absorb the heat, which is then dispersed by the three integrated air fans. The speed of the fans can be increased or decreased with the control dial to control the heat dissipation rate, like adjusting the water flow of traditional water-cooled condensers.

CLEANING AFTER USE: To clean, you can use a household vacuum cleaner to remove dust that may collect in the fan grill and the finned tubes over time.  To clean inside the product pathway, conduct a distillation run of equal parts white vinegar and drinking water.

CAUTION: Metal fins can have sharp edges.  Use care when handling, assembling, cleaning, or storing this unit, and avoid running fingers along the fin surface.

DISCLAIMER: Please note that in certain countries alcohol distillation and the possession of distilling equipment is illegal and permits/licenses may be required. For guidance or advice, contact your relevant local authorities.

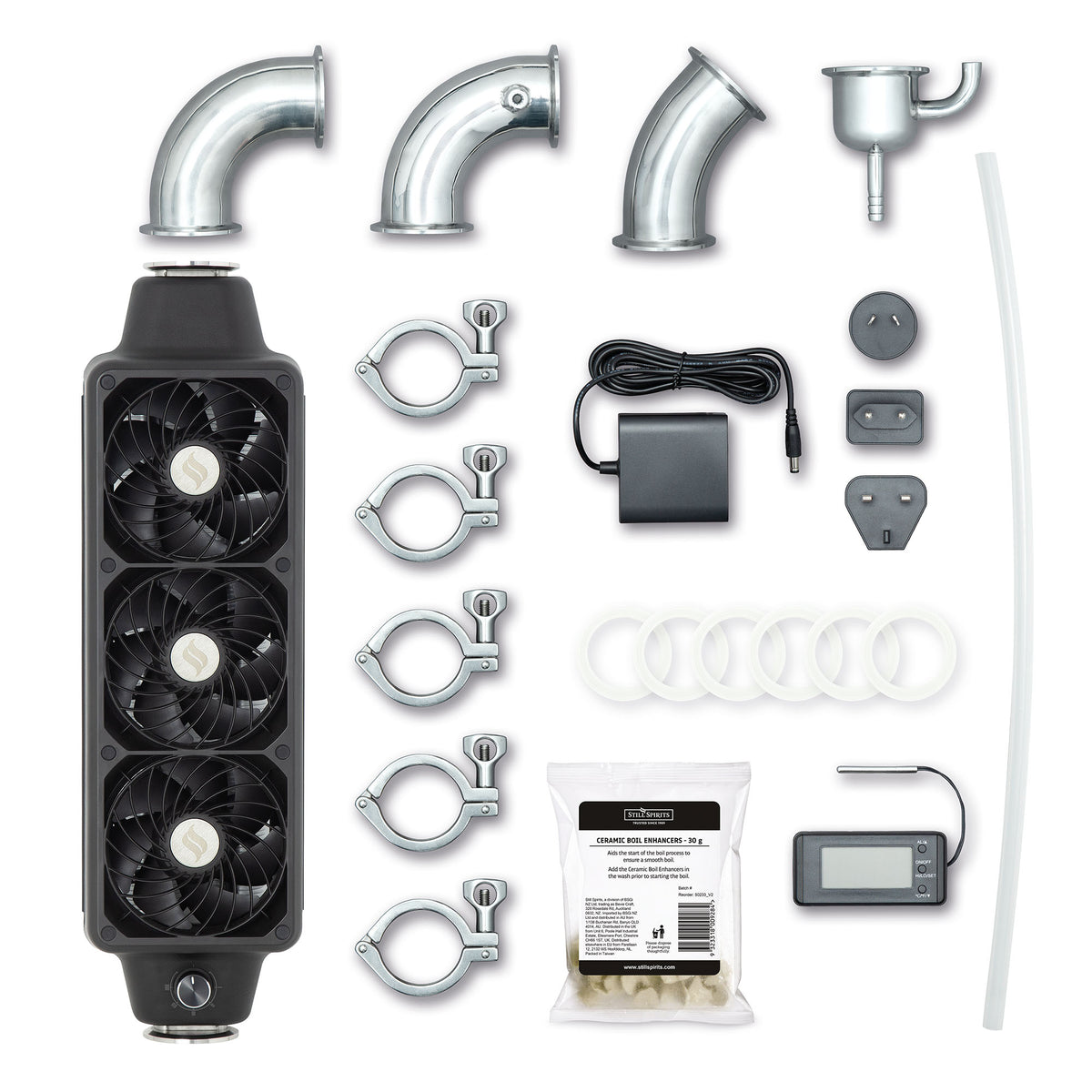

• VORTEX Air-Cooled Condenser Module
• Universal Power Supply (NZ/AU, US/CA, UK, EU)
• Instruction Booklet
• CREATE+ 90° Thermowell Elbow
• CREATE+ 90° Elbow
• CREATE+ Vented Collection Cup
• CREATE+ Beeping Alarm Thermometer
• CREATE+ 45° Elbow
• 6 x 2" Silicone Gaskets
• 5 x 2" Tri-Clamps
• Ceramic Boil Enhancers
• .5 m Silicone Tubing

• Dimensions: H 37 cm x W 22 cm x D 61 cm
• Weight: 7.2 kg

Key features:
• Connects to 2" tri-clamp distilling accessories
• Replaces a water-cooled condenser and/or dephlegmator to support cooling water-free distillation
• 304 grade stainless steel components and product tubes
• 1060 grade aluminium fins
• High temperature resistant food grade silicone

NOTE: The Still Spirits Boiler Lid and Alembic Dome are designed primarily for small to medium-sized distilling setups that do not have heavy, off-centre attachments. The lid and dome are reasonably flexible and sturdy enough to fit components that are within the following specifications:
• A total column & condenser height up to 1.1 m (3.6 ft) from the lid or dome.
• A total column & condenser weight up to 11 kg (24 lbs), including up to 2 kg (4.4 lbs) of off-centre weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm (6”) to the main column.

We recommend external support if:
• Your column & condenser exceed the above specifications.
• The lyne arm is not vertical but angled or perpendicular, running away from the column, resulting in significantly distant off-centre weight.
• If the column & condenser are noticeably leaning.
