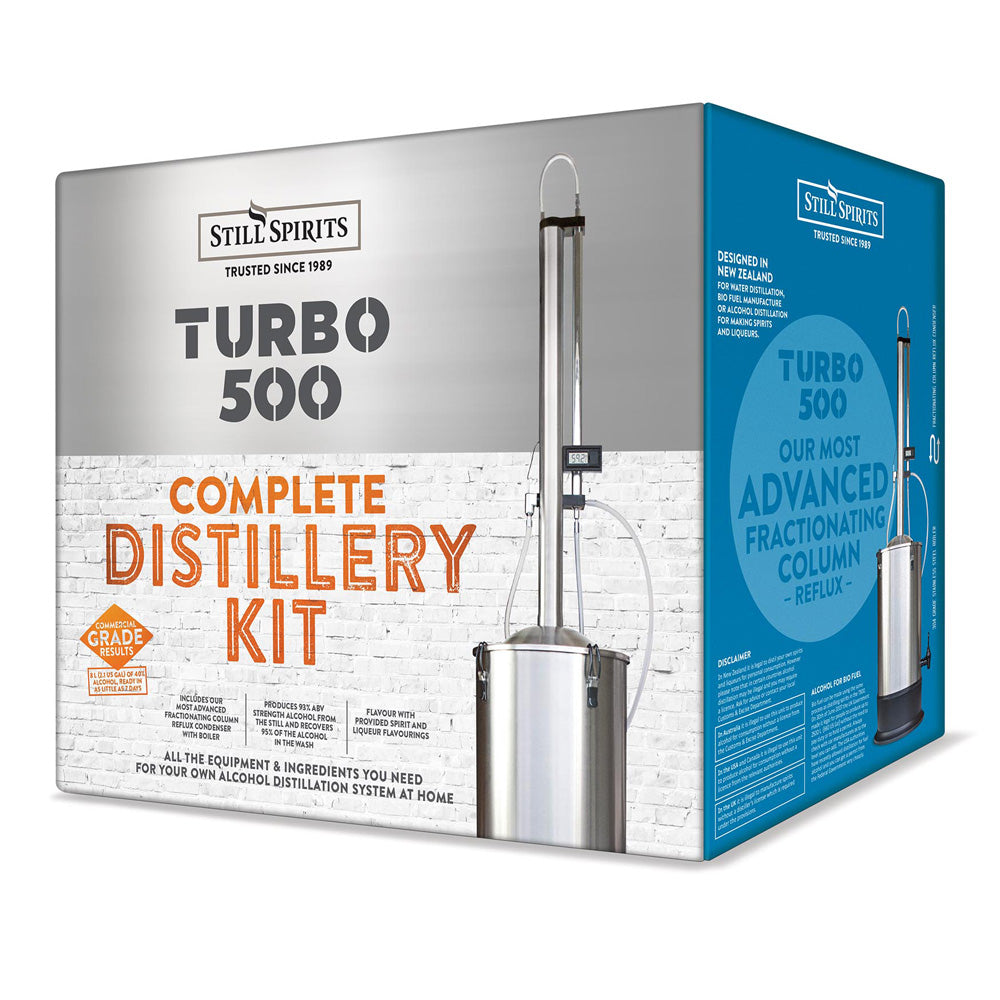

SS Create+ T500 Column & Condenser, Boiler & Distillery Kit

This reflux distillation kit is the ultimate set-up for producing quality neutral spirits and liqueurs at home.

This kit comes with everything you need to make high-quality spirits at home using the T500. Also suitable for distilled water and hydrosols.

This boiler features two power switches. When both switches are on, the element will be supplied full power of 2200W for 220V units. You can lower this to 1100W by switching one of the two switches off.

Features:

• For intermediate distilling
• Suitable for distilled water and neutral spirits
• T500 made from 304-grade stainless steel
• Boiler made from 304-grade stainless steel
• Designed in New Zealand
• Faucet adaptor for ease of cooling water connection
• Produces alcohol at up to 93% ABV
• Boil dry reset
• Thermal cut out fuse
• Waste discharge tap with a stainless-steel ball valve
• Boiler lid with 48 mm opening
• 25 L Boiler capacity

DISCLAIMER: Please note that in certain countries alcohol distillation and the possession of distilling equipment is illegal and permits/licenses may be required. For guidance or advice, contact your relevant local authorities.

• Create+ T500 Column & Condenser
• Create+ Boiler 25 L
• 6 kg Turbo Production Pack
• 30 L Plastic Fermenter complete with Tap, Sediment Reducer, Airlock, Grommet and Stick On Thermometer
• Easy Filter
• 5 L Measuring Jug/Collector
• 50 cm Stirring Spoon
• Hydrometer
• Top Shelf Select Spirit Flavourings (3)
• Top Shelf Select Liqueur Flavourings (2)

Specifications

T500:

• Dimensions: H 69 cm x W 8.5 cm x D 16 cm
• Weight: 2.3-2.99 kg
• Warranty: 3 years

•  Ease of Use: Intermediate
• Average water use during distillation: You will use approx. 200 L (54 US Gal) per 25 L distillation.*
• Yield: 8 L (2.1 US Gal) of 40% ABV alcohol per 25 L (6.6 US Gal) wash (based on using the standard recipe of 6 kg (13.2 lb) of sugar**
• Purity: Distills at up to 93% ABV (186 US proof) before diluting to 40% ABV (80 US proof)**

Boiler:

• Capacity: 25 L
• Dimenions: H 64 cm x W 36 cm x D 37 cm
• Weight: 5.42 kg
• Power: 2200W (1600W for US/CA Units)
• Warranty: 3 years

* When used with the Create+ Water Flow Regulator.

**Per 25 L (6.6 US Gal) Turbo Classic 8 Production pack wash using the Create+ Boiler 25 L and T500.
